PRODUCT CENTER

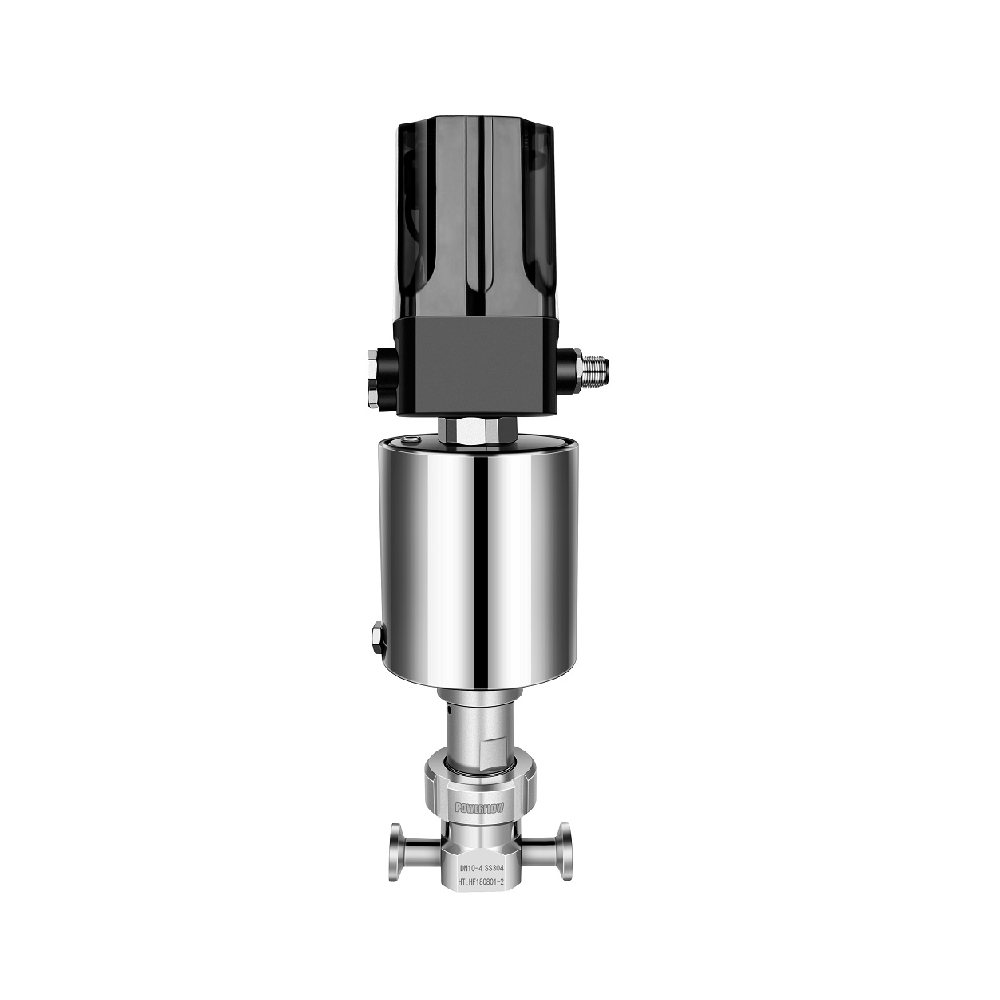

Xfluid 3100 series micro control valve

It is designed to handle small flow rate liquid and air precisely with maximum 180℃ temperature.

Valve Structure
Dimensions
Kv Data
Size 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
3128(DN2.8) 0.007 0.013 0.02 0.024 0.035 0.04 0.043 0.06 0.079 0.18
3135(DN3.5)
 0.034 0.042 0.048 0.064 0.074 0.088 0.1 0.12 0.2 0.26
3140(DN4) 0.06 0.068 0.088 0.1 0.12 0.13 0.15 0.19 0.35 0.43
3160(DN6) 0.04 0.063 0.093 0.11 0.143 0.18 0.234 0.38 0.6 0.72
3180(DN8) 0.25 0.32 0.44 0.52 0.65 0.77 0.92 1.06 1.16 1.19
